Mono crystalline 182 PERC-10 solar cell specifications

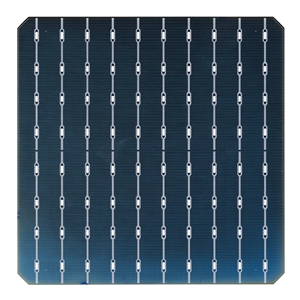

(1) Appearance:
(2) Brief Introduction:
PID: PID free.

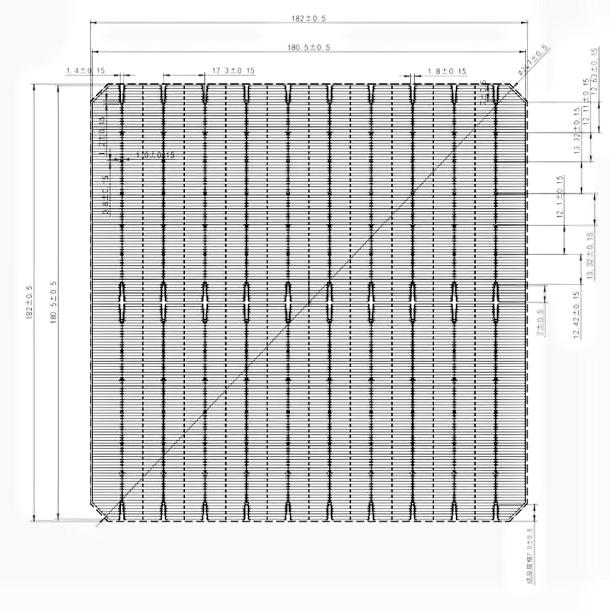

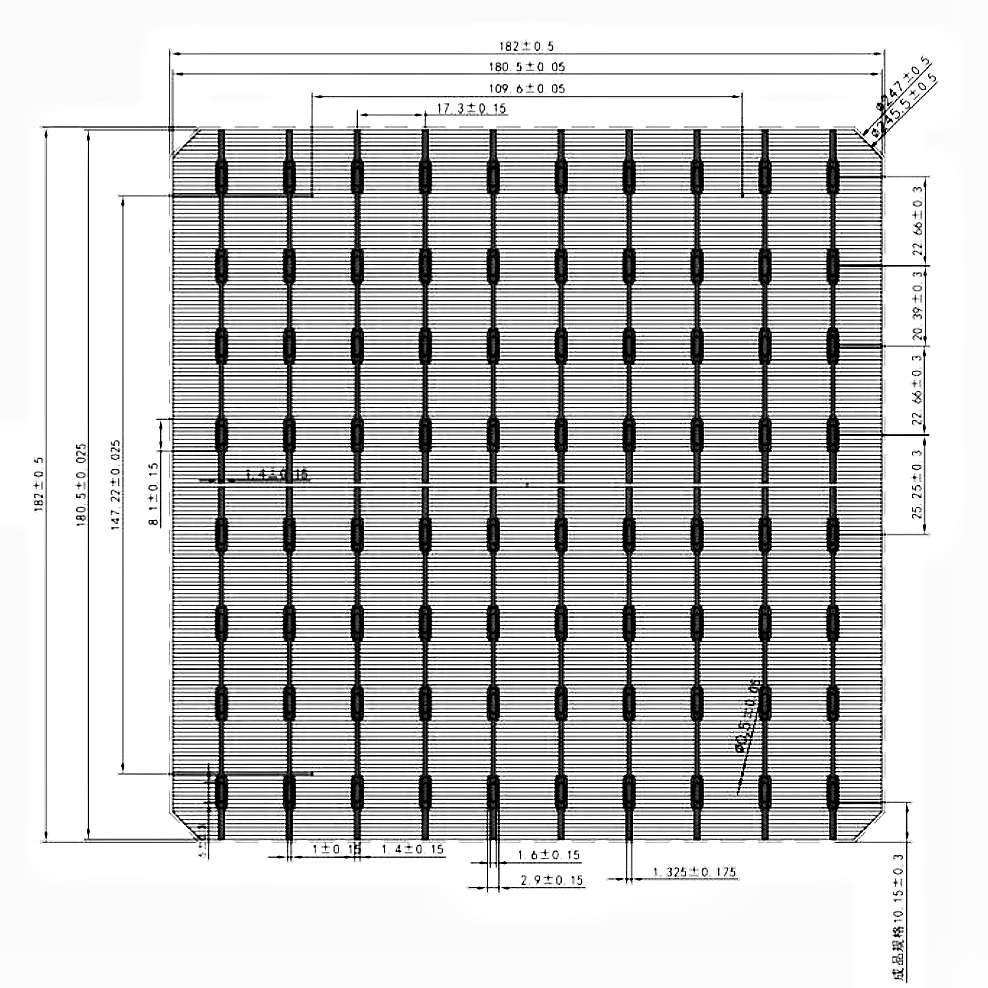

Mechanical Data and Design |
Dimension | 182mm*182mm±0.25mm |
Thickness | 160µm±20µm |
Front(+) | 10*1.2mm busbars (silver), 160 finger grids, Blue anti-reflecting coating (silicon nitride) |
Back (-) | 10 busbars(silver), covered with aluminum grid wire |
Refined production process, the average conversion efficiency can reach 22.60%, the highest efficiency can reach 23.0%, and the maximum output power of the module can reach 455W.
SE technology to ensure better shortwave response.
The use of electric injection reduces the light decay of the cell and ensures the long-term stability of the module.
Automatic film color sorting ensures uniform color on the surface of the cell and makes the appearance of the modules more beautiful.
Monitor the whole process from the incoming silicon wafer to the finished cell
Package&transportation to ensure the high quality and performance of the product.
(3) Electrical Characteristics:
Standard test conditions(STC) Light intensity: standard intensity 1000w/m2 , spectrum: AM1.5 spectrum, Temperature: 25℃
NO. | Eff (%） | Pmpp(W) |
EGM12MP2/BI | 23.1 above | 7.63 |
EGM12MP2/B2 | 23.0-23.1 | 7.59 |
EGM12MP2/B3 | 22.9-23.0 | 7.56 |
EGM12MP2/B4 | 22.8-22.9 | 7.53 |
EGM12MP2/B5 | 22.7-22.8 | 7.49 |
EGM12MP2/B6 | 22.6-22.7 | 7.46 |
EGM12MP2/B7 | 22.5-22.6 | 7.43 |
EGM12MP2/B8 | 22.4-22.5 | 7.39 |
EGM12MP2/B9 | 22.3-22.4 | 7.36 |
EGM12MP2/B10 | 22.2-22.3 | 7.33 |
EGM12MP2/B11 | 22.1-22.2 | 7.3 |
EGM12MP2/B12 | 22.0-22.1 | 7.26 |
EGM12MP2/B13 | 21.9-22.0 | 7.23 |
(4) Temperature coefficients:
Tk voltage | -0.36%/K |
Tk current | +0.07%/K |
Tk power | -0.38%/K |

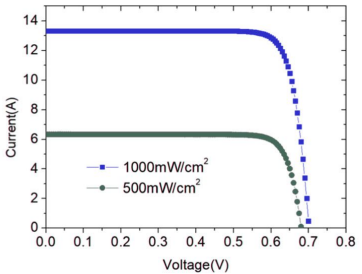

（5）Typical I-V curve:
